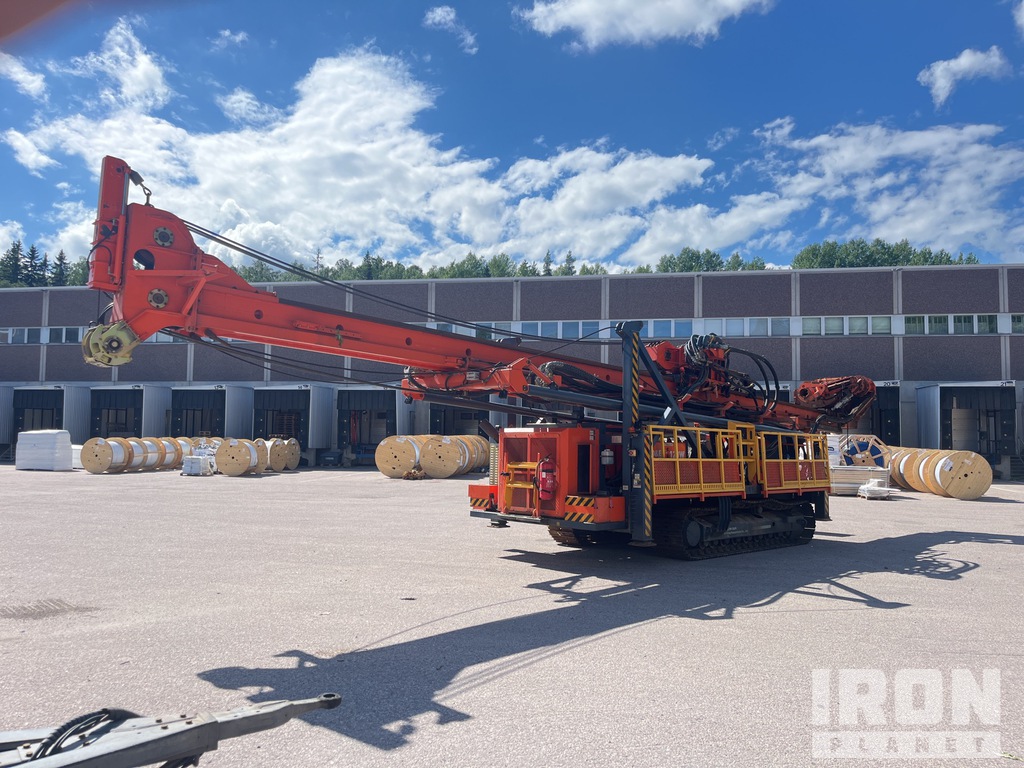

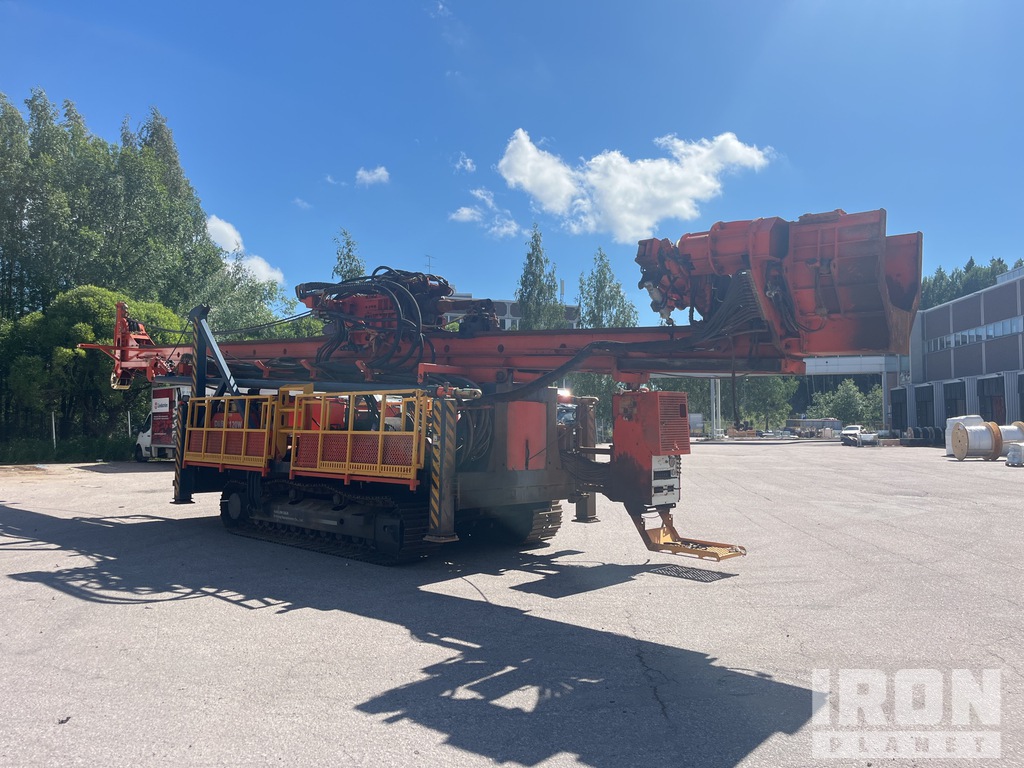

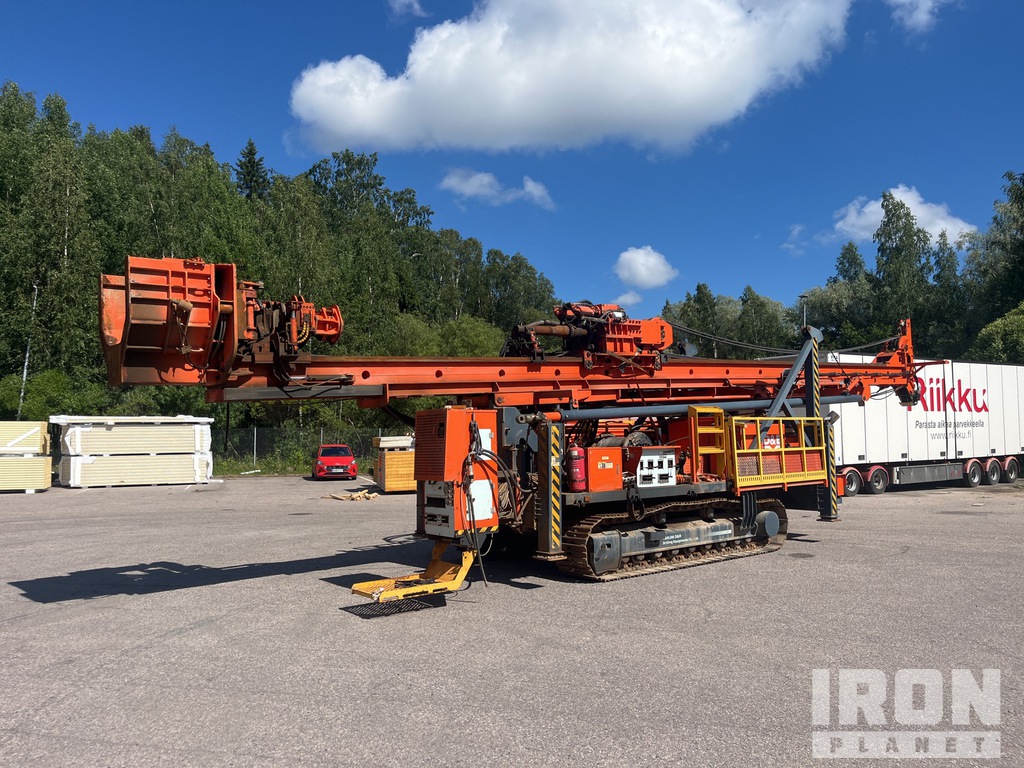

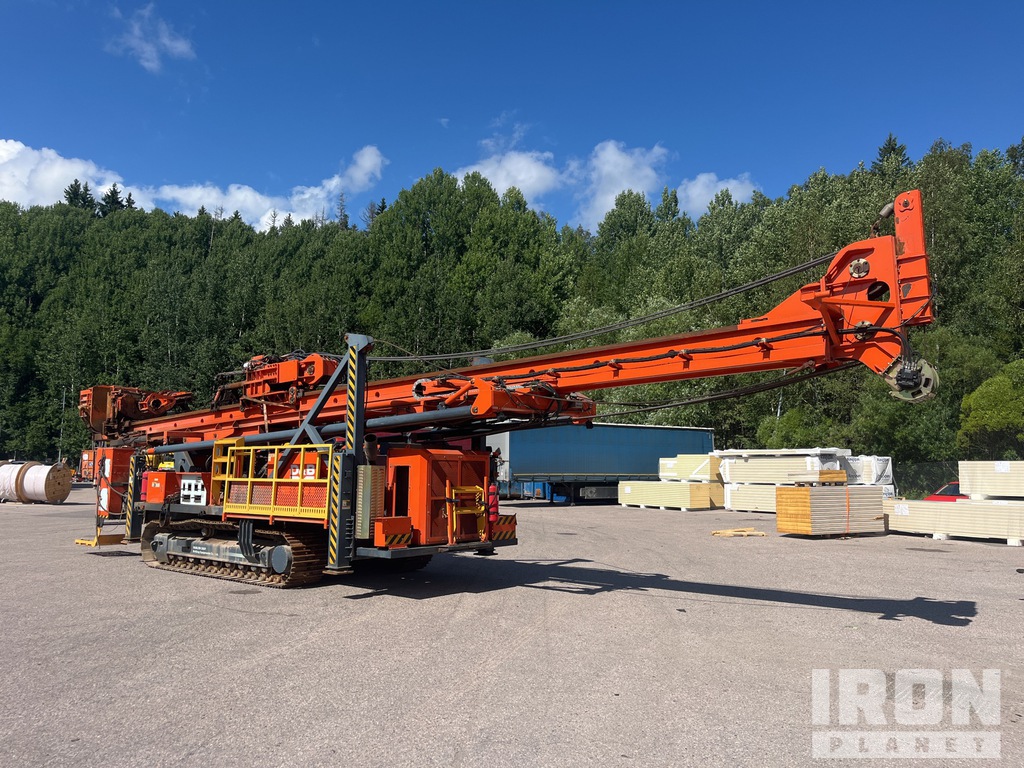

2019 Hanjin D&B 120W Drilling Rig

#12019678

いいえ

- Engine: Hyundai; Power - 420PS/2000RPM; Cooling System - Water Cooling; - Drill Head Section: Reduction - Super gear - 5.1 to 1; Max. RPM - 1st 0-150rpm; 2nd 0-200rpm; Max. Torque - 1st 2600kg-M; 2nd 1300kg-M; - Feed System Head travel 1st: 11M; 2nd: Up- 1.4M, Down- 1.8M Pull-up capacity 120ton Pull-down capacity 9ton - Main Feed Winch Spool capacity 30M of 19㎜ cable Line pull 17 tons - Sub Feed Winch Spool capacity 25M of 16㎜ cable Line pull 9 tons - Winch Spool capacity 27M of 12㎜ cable Line pull 3 tons - Main Hydraulic System 3 pump open loop system Pump discharge rate H3V280DT (P1:280cc, P2:280cc) +Gear Pump(P3:10cc) - Sub Hydraulic System 4 pump open loop system - Pump discharge rate H3V63DT (P1:63cc, P2:63cc) +HSF30D (P3:30cc, P4:30cc) - Working Table Max. Casing diameter 12" Lod Handler Tilting Degree 90° Lod Handler Clamp Size Max 127mm - Crawler Base Crawler type Solar 220 (Motor : Solar 220) Ground pressure 0.5㎏/㎠

(i)the Equipment is located in Finland and (ii) TO THE FULLEST EXTENT PERMITTED BY LAW, THE ITEM IS SOLD ON AN "AS IS" AND "AS AVAILABLE" BASIS WITHOUT WARRANTIES OF ANY KIND, WHETHER EXPRESS OR IMPLIED, INCLUDING, WITHOUT LIMITATION, IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE FULLEST EXTENT PERMITTED BY LAW, IN NO EVENT SHALL THE SELLER BE LIABLE FOR ANY SPECIAL, INDIRECT, PUNITIVE, COVER, INCIDENTAL OR CONSEQUENTIAL DAMAGES, HOWEVER CAUSED, WHETHER IN CONTRACT OR TORT OR UNDER ANY OTHER THEORY OF LIABILITY, INCLUDING LOSS OF REVENUE, PROFITS, OR BUSINESS, ANY LOSS OF GOODWILL OR REPUTATION, OR THE COSTS OF SUBSTITUTE GOODS OR SERVICES, EVEN IF THE SELLER OR AN AUTHORIZED REPRESENTATIVE THEREOF HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. and (iii) "Listing and sale of this item is subject to Swedish law. Disputes shall be brought before the Stockholm District Court".
